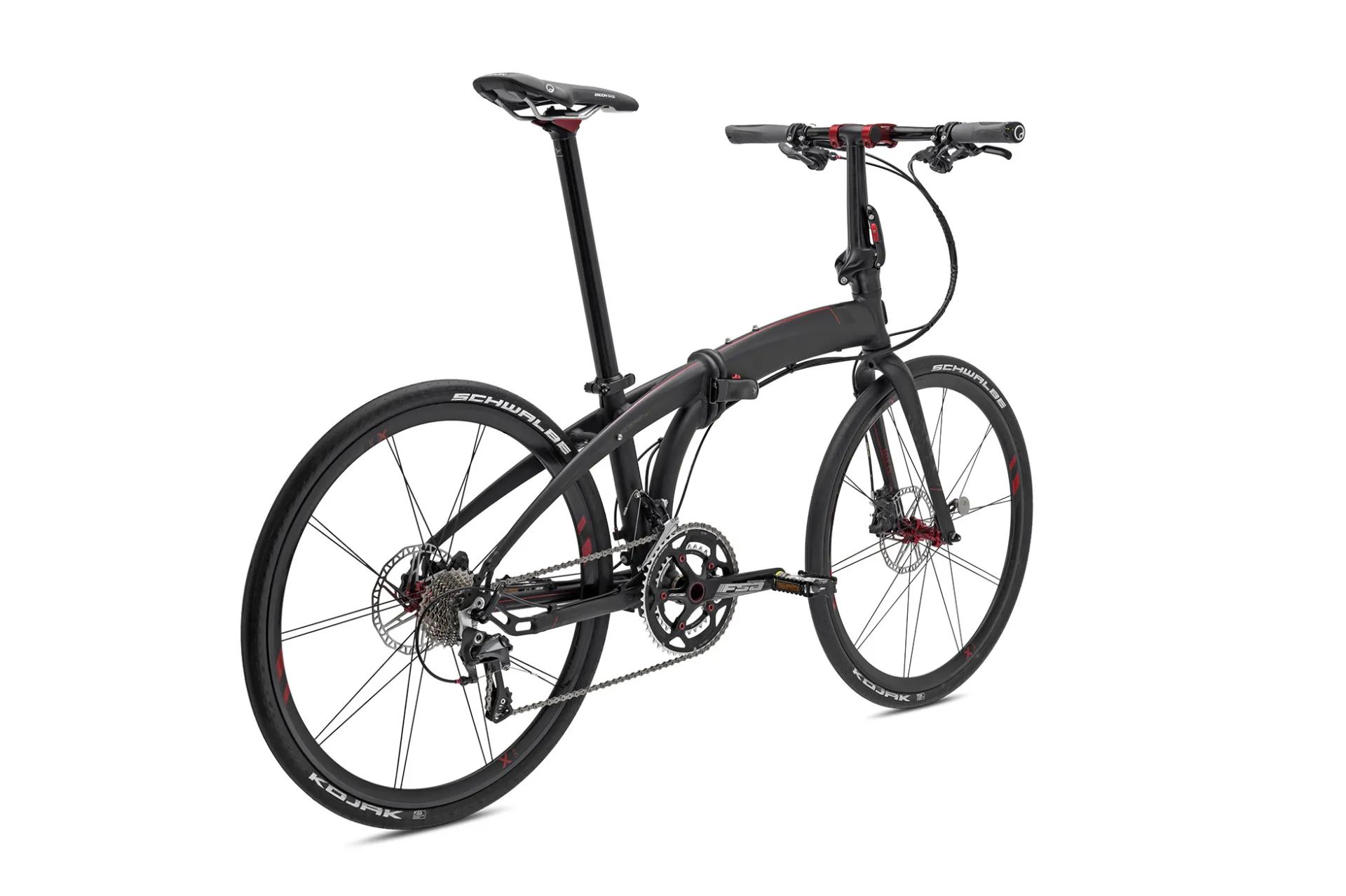

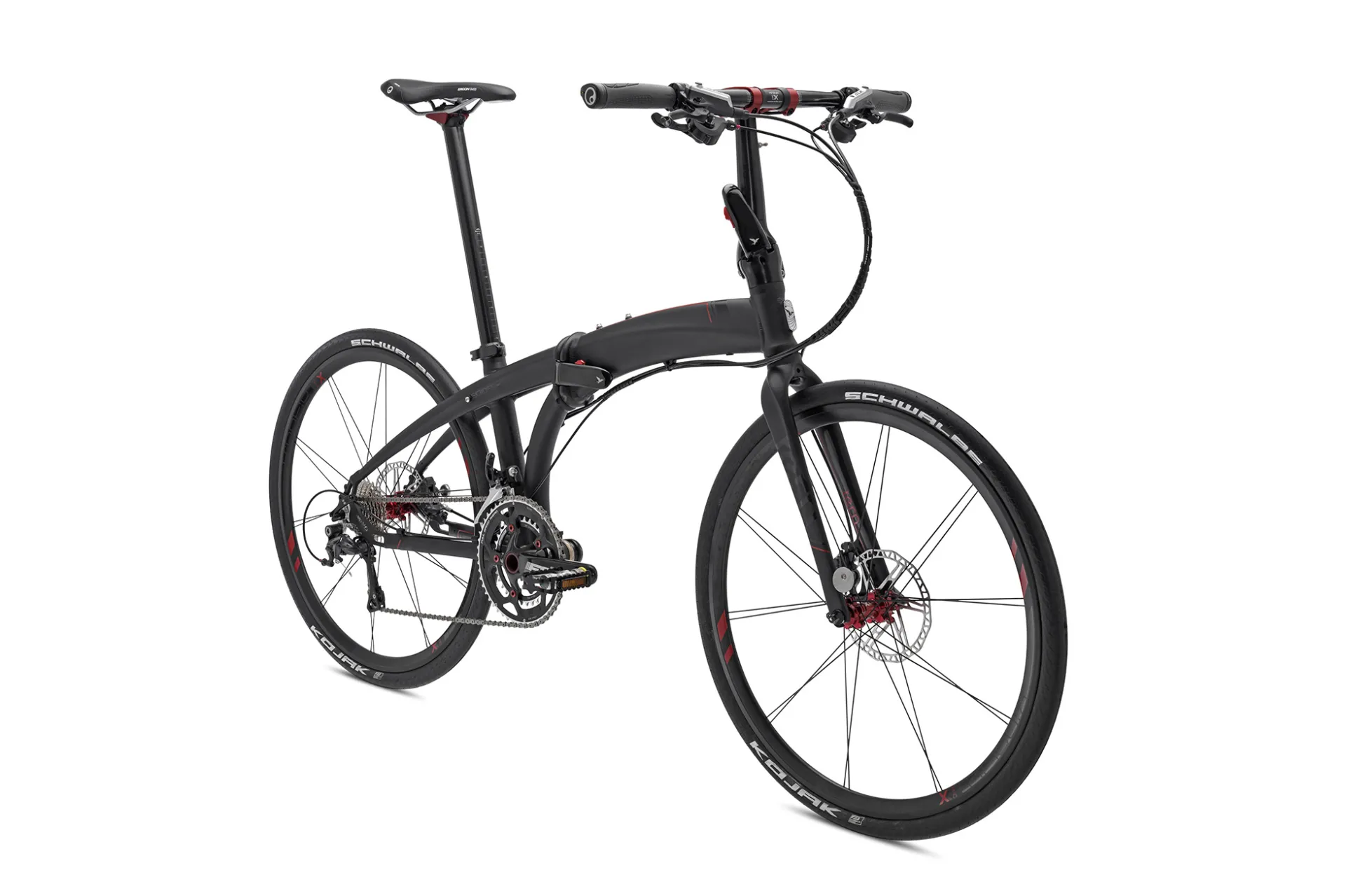

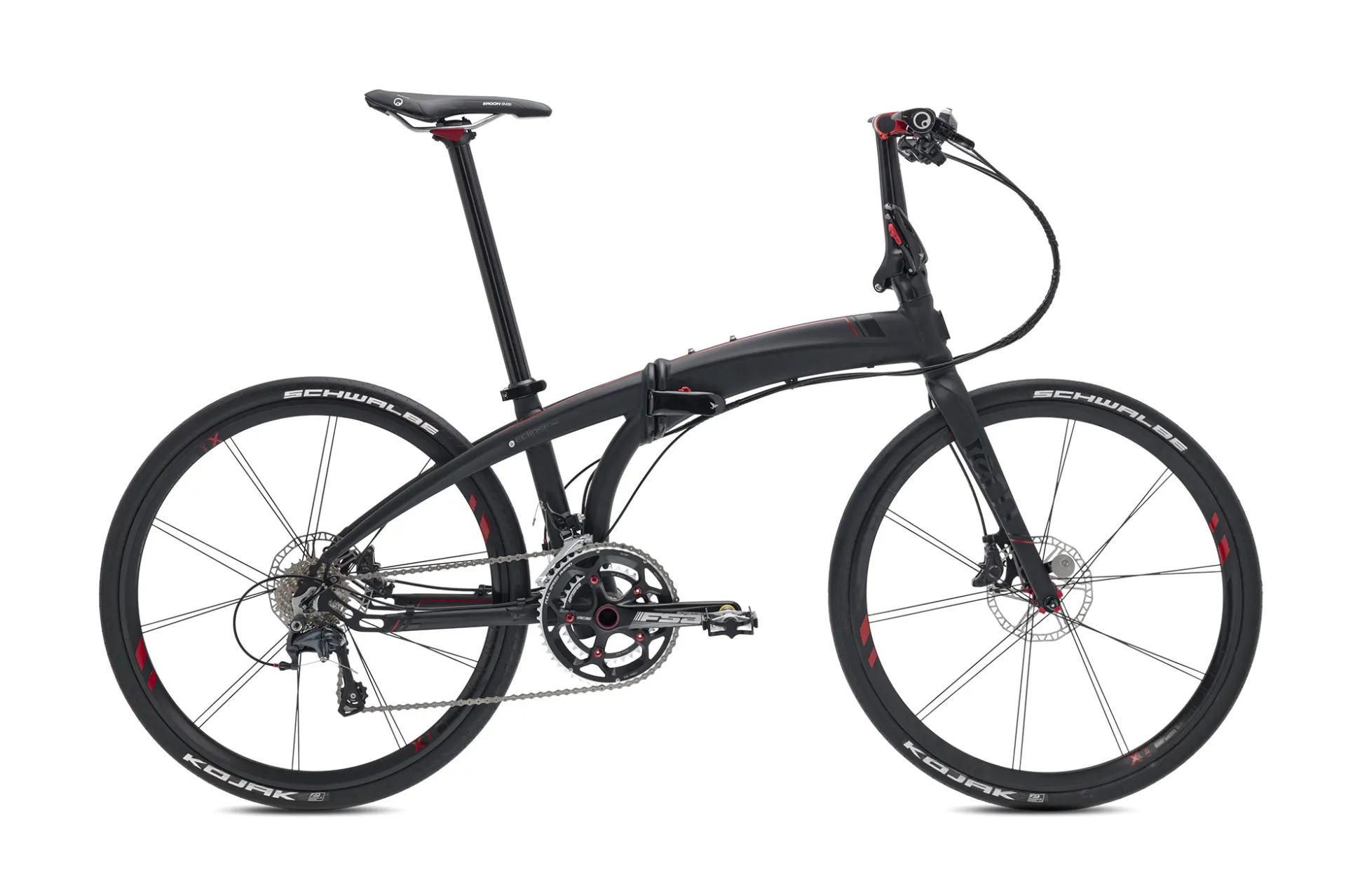

Tern Eclipse X22 Folding Road Bike 26″ Wheel – Matte Black
The Tern Eclipse X22 is designed to be the fastest folding bike in the world. With hand-built 26” wheels and race-tuned geometry, it’s a full sized road bike, but it folds down small in 10 seconds. It boasts a Shimano 105 drivetrain, and—just in time for the UCI’s new regulations—a set of Shimano hydraulic disc brakes. With a stealth black finish, hydroformed fork, red Syntace accents, and perfected engineering, the X22 inaugurates a new chapter in Tern design.
Key Features:
- Speeds: 2 x 11
- Weight: 11.3 kg (24.9 lb)
- Gear Inches: 30″ – 112″ (2.38 – 8.92 m)
- Frame Sizes: One size

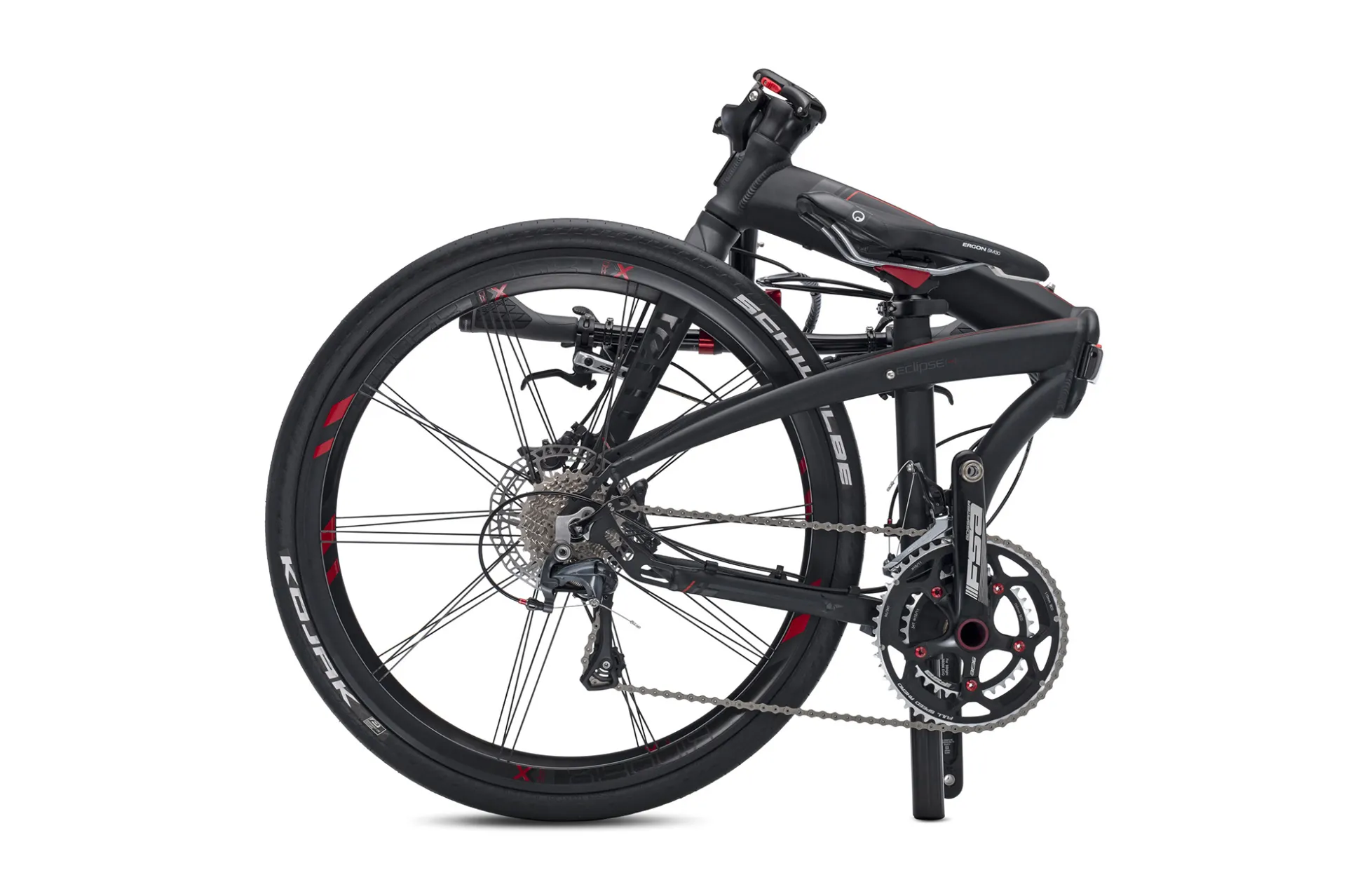

- Folding Size: 42 × 89 × 81 cm (16.5 × 35 × 31.9 in)
- Folding Time: 10 sec
- Distance: Seatpost to Handlebar: 60 – 64 cm (23.6 – 25.2 in)
- Distance: Saddle to Pedal: 77 – 104 cm (30.3 – 40.9 in)
- Suggested Rider Height: 148 – 195 cm (58.3 – 76.8 in)
- Max Gross Vehicle Weight: 120 kg (264.6 lb)
- Max Rider Weight: 105 kg (231.5 lb)
- Frame: Tern Eclipse, hydroformed aluminum w/ smooth TIG welding, OCL+ joint, 3 patented technologies

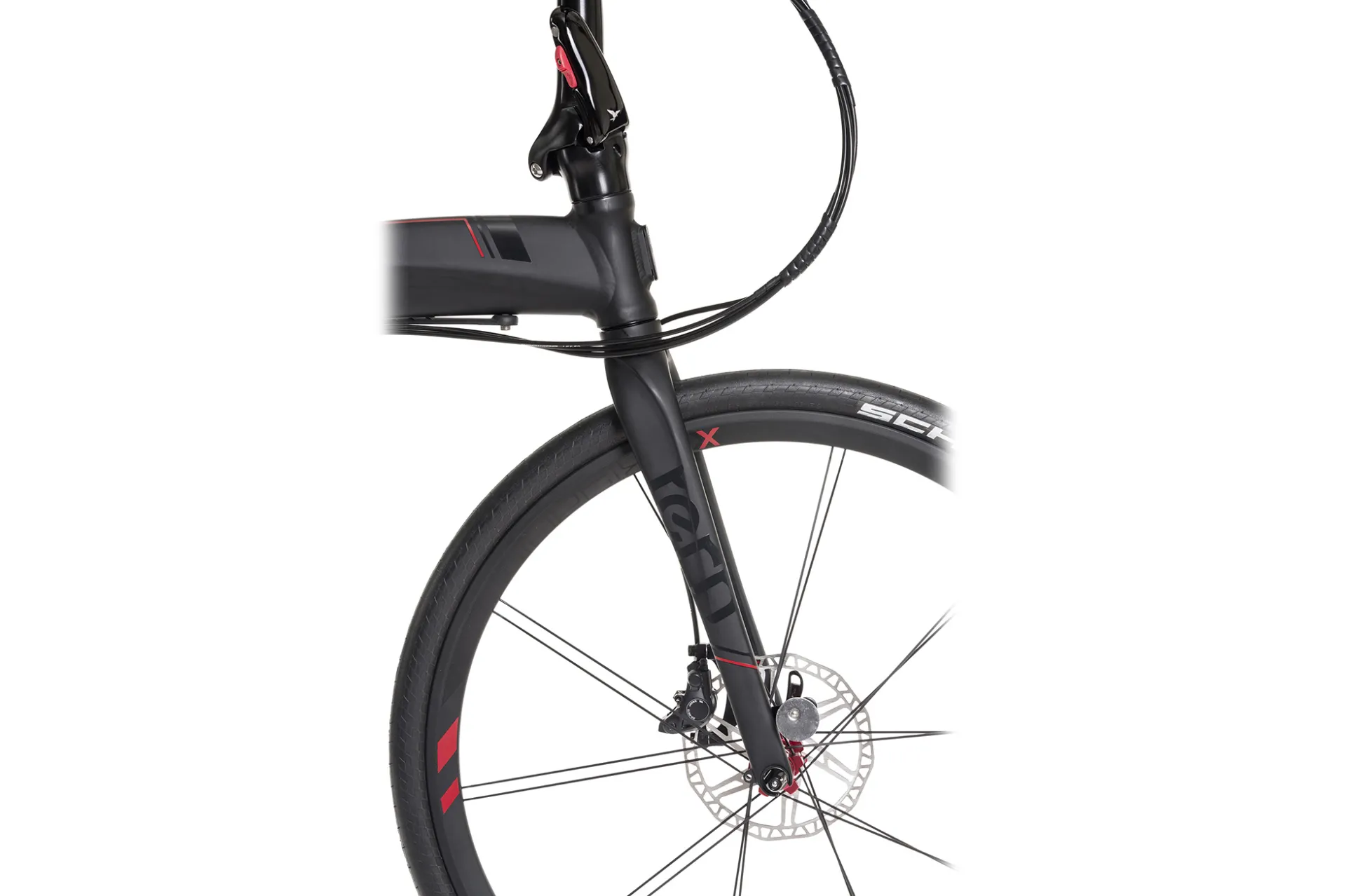

- Fork: Tarsus, 6061-AL, hydroformed
- Handlepost: Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm

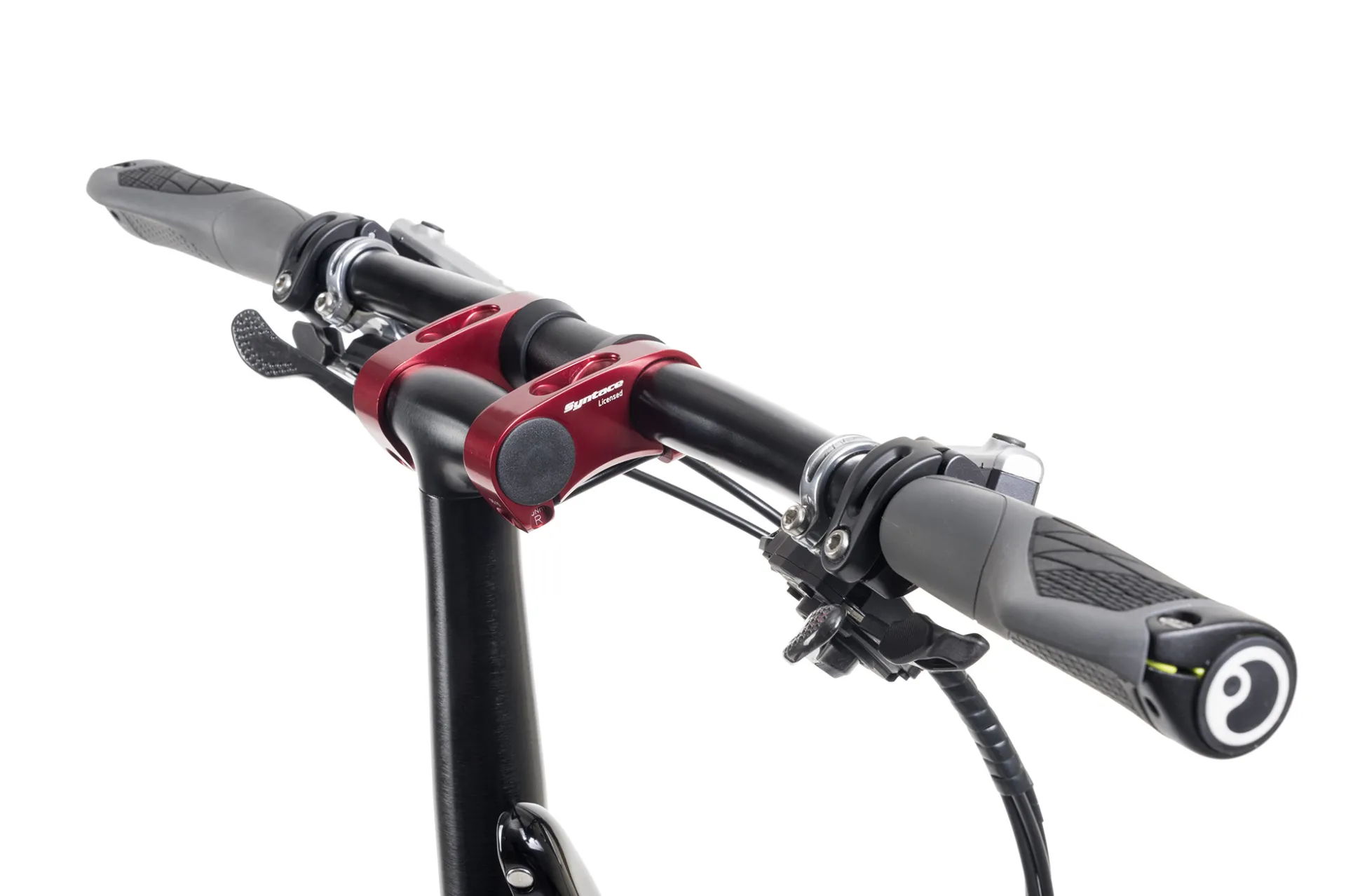

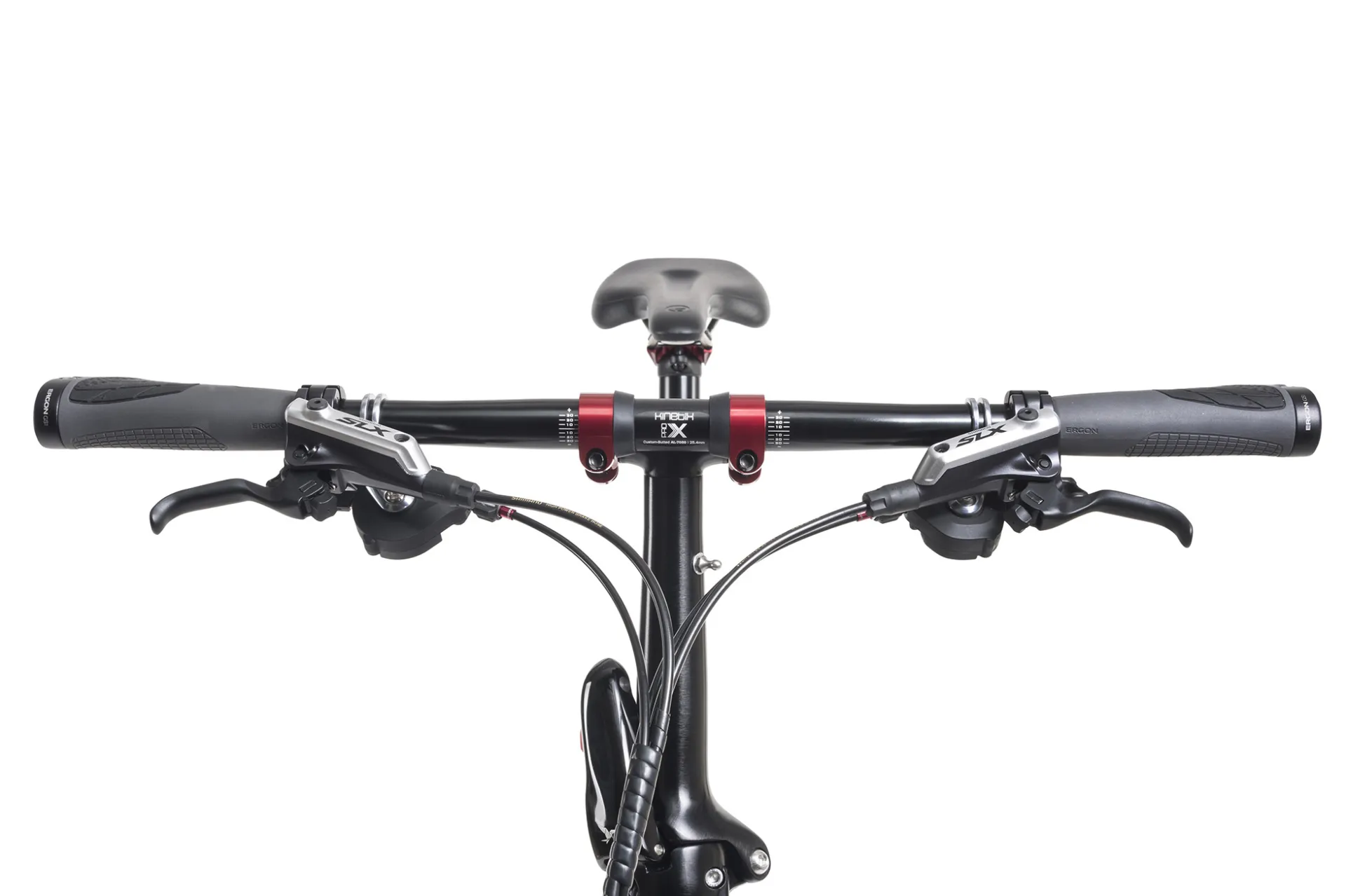

- Stem: Syntace VRO, adjustable
- Headset: Flux Pro, angular contact bearings, Physis integrated
- Handlebar: Kinetix Pro X, 7050-Al, multi-stage butted
- Grips/Bar Tape: Ergon GP10 L
- Saddle: Ergon SMC10 Sport Gel
- Seatpost: Stasis by Syntace, 7050-AL, hard-anodized
- Seatpost Clamp: Syntace OverLock

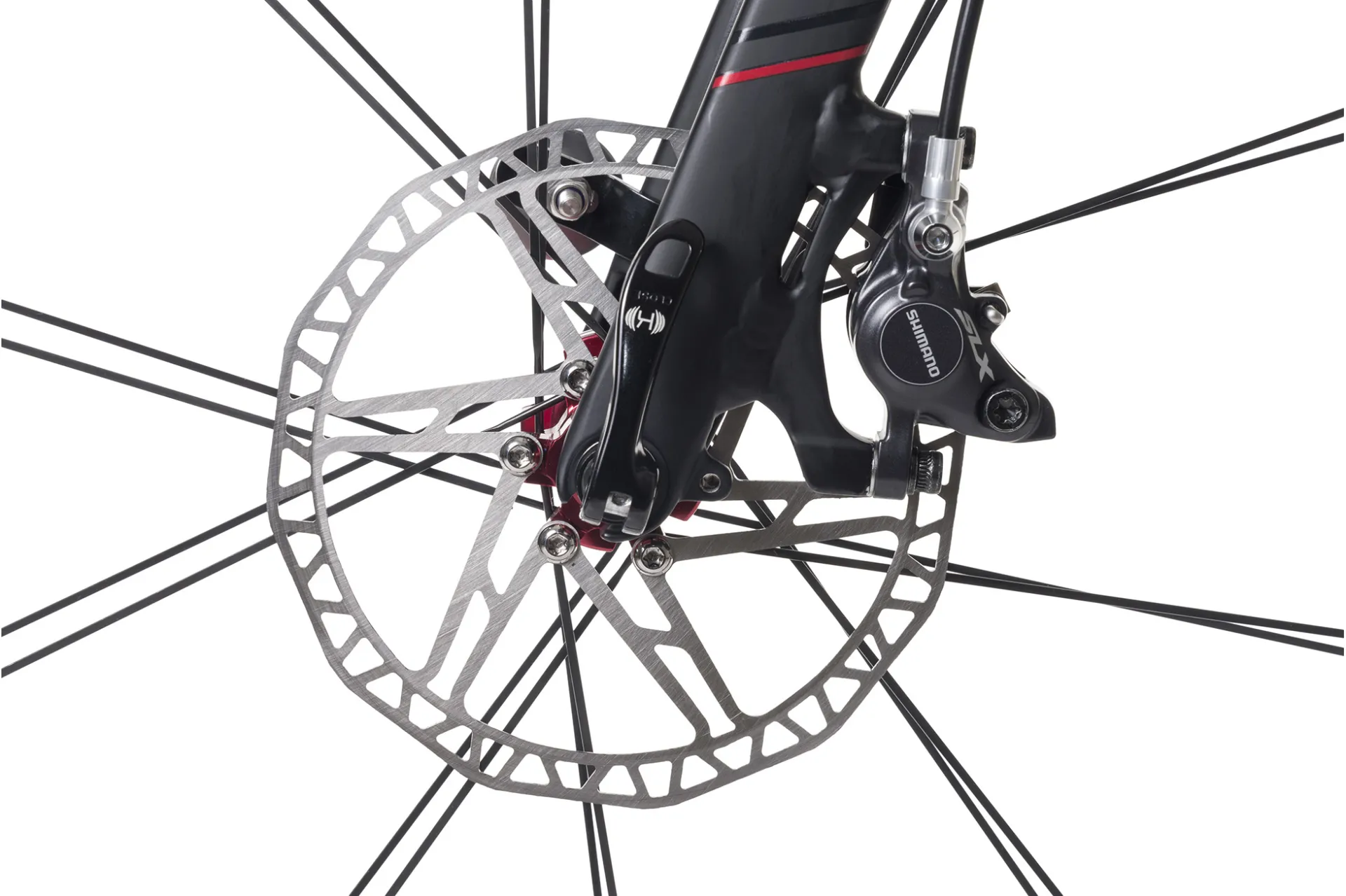

- Front Brake: Shimano Deore, hydraulic disc
- Rear Brake: Shimano Deore, hydraulic disc
- Brake Levers: Shimano Deore, hydraulic disc
- Brake Cable & Housing: Shimano, hydraulic
- Front Wheel: Kinetix Pro X Disc, Paired Spoke technology, straight-pull design, 20H, asymmetric flange, 700 g
- Rear Wheel: Kinetix Pro X Disc, Paired Spoke technology, straight-pull design, 20H, asymmetric flange, 820 g
- Spokes & Nipples: Sapim CX-Sprint, internal Polyax nipples
- Tyres: Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
- Shifter(s): Shimano Ultegra trigger, 2×11 spd
- Front Derailleur: Shimano 105

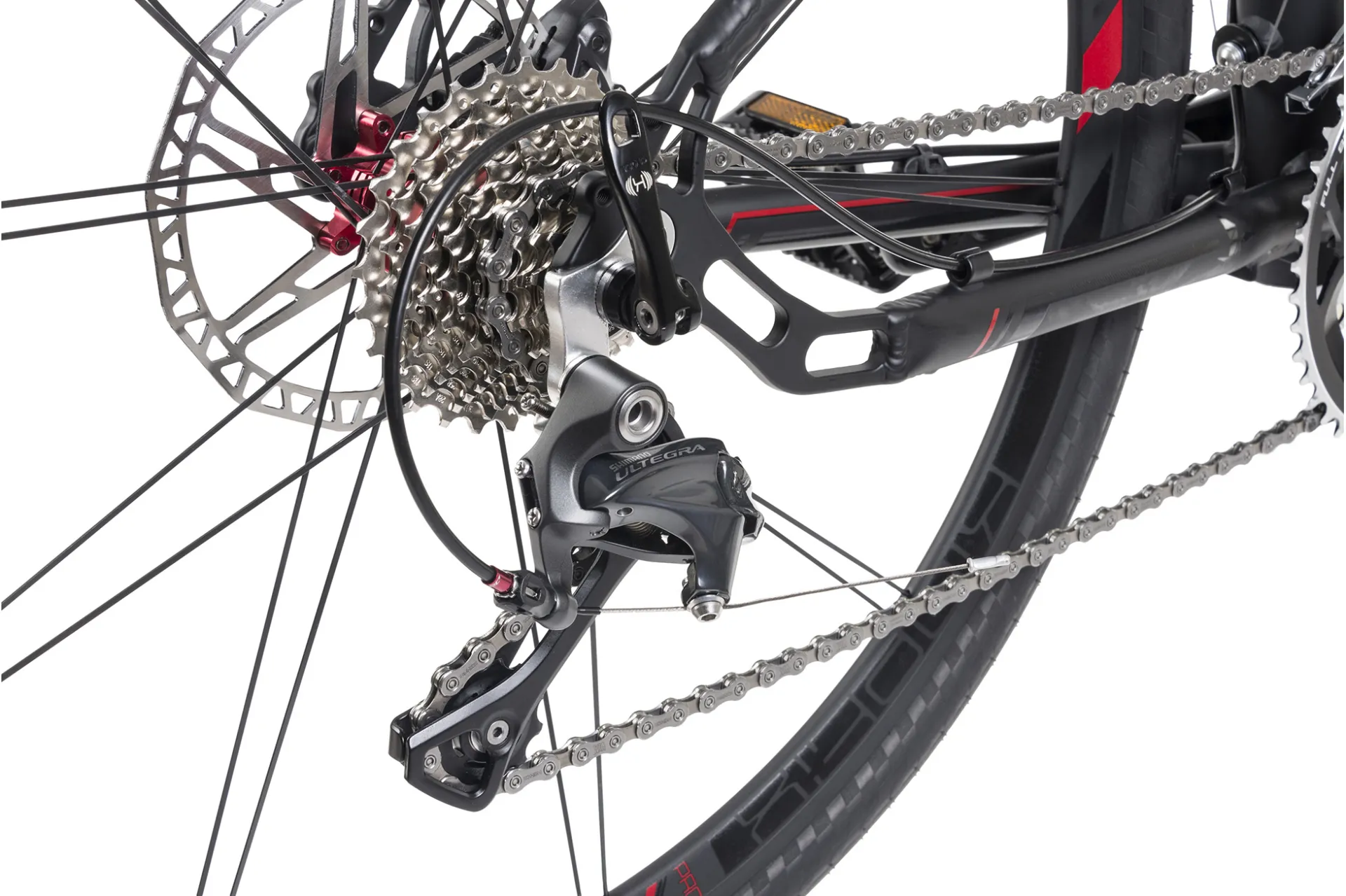

- Rear Derailleur: Shimano Ultegra

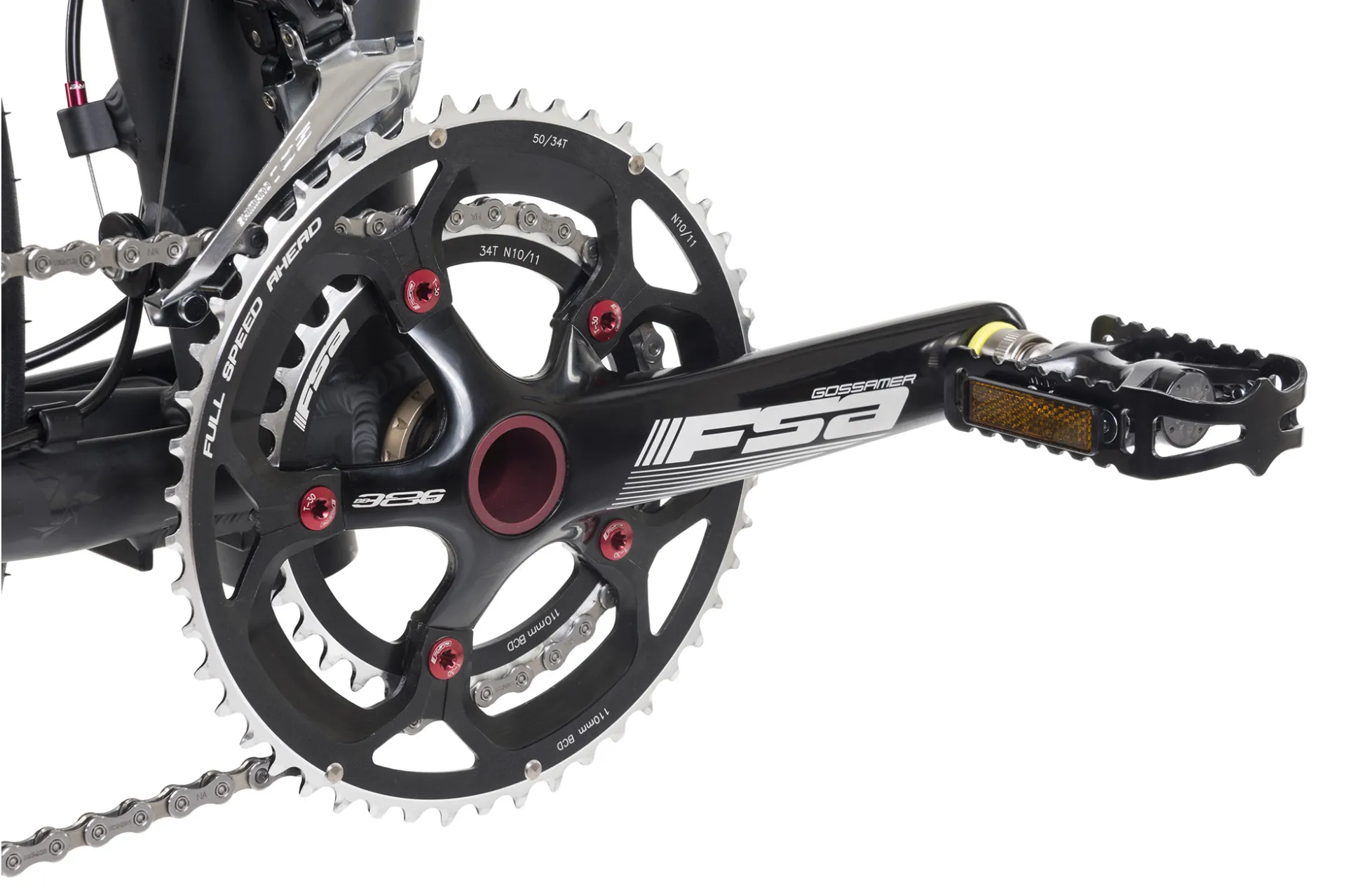

- Crankset: FSA Gossamer Pro, 50/34T, BB386 oversized aluminum spindle
- Cassette/Freewheel: Shimano 105, 11-28T, 11 spd
- Bottom Bracket: FSA MegaEVO, BB386
- Chain: Shimano 105, 11 spd
- Pedals: MKS UB-LITE EZY, QR
- Shifter Cable & Housing: Jagwire LEX-SD, ultra-slick polymer coating, alloy ferrules
- Bell: Pitch, Brass
- Clip System: Magnetix 2.0
- Luggage Socket: Yes
- Rear Light: BioLogic TailLight
