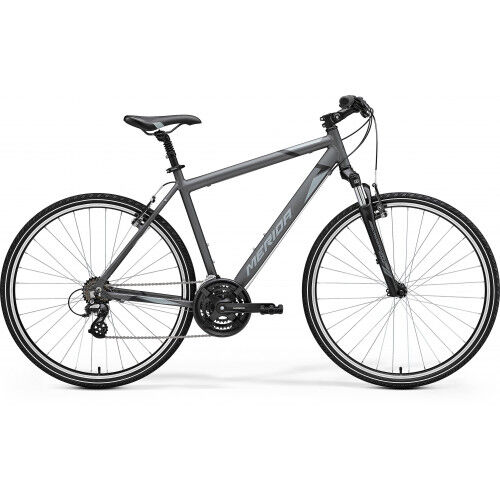

Merida Crossway 10V, 21 Speed, 700C Wheel - Grey/Black
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. For ultimate adaptability, the Crossway can be equipped with mudguards, racks and kickstands.
Key Features:
- Frame - DT - 6061 double butted technoformed aluminium. BSA BB standard, 135 x 9mm QR axle standard. Mounting points for rack, mudguards and kickstand. Max tyre size 700 x 42c
- Fork - Suntour NEX; Coil; 63mm travel. Max tyre size: 700 x 50c
- Gears - 21
- Shifters - Shimano ST-EF500
- Front Derailleur - Shimano FD-TY510
- Rear Derailleur - Shimano RD-M310
- Bottom Bracket - FSA TH-7420ST, Cartridge Bearing
- Chain - KMC NS8
- Chainset - Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm (S), 175mm (M/L,XL)
- Cassette - Shimano MF-TZ500; 14-28 teeth; 7 speed
- Brake Lever - Shimano ST-EF500
- Brakes - Promax MTV-117A V Brake
- Grip - Merida EC
- Handlebar - Merida CC; steel; 620mm width; 30mm rise
- Stem - Merida TK; aluminium; 25.4mm diameter; adjustable - Stem length: 100mm (all sizes)
- Pedal - VP Components, VPE-891
- Saddle - Merida Cross Sport
- Seat Post - Merida TK; 27.2mm diameter; 13mm setback; 40mm seatpost suspension travel
- Wheel Size - 700c
- Rims - Merida CC; 17mm inner rim width; aluminium
- Front Hub - Joytech JY-751DSE; 100x9mm; 32 spokes
- Rear Hub - Joytech JY-752DSE; 135x9mm; 32 spokes
- Tyres - Merida K1171; 700x40C; wire bead
Merida Crossway 10V, 21 Speed, 700C Wheel - Grey/Black
Key Features:
- Frame - DT - 6061 double butted technoformed aluminium. BSA BB standard, 135 x 9mm QR axle standard. Mounting points for rack, mudguards and kickstand. Max tyre size 700 x 42c
- Fork - Suntour NEX; Coil; 63mm travel. Max tyre size: 700 x 50c
- Gears - 21
- Shifters - Shimano ST-EF500
- Front Derailleur - Shimano FD-TY510
- Rear Derailleur - Shimano RD-M310
- Bottom Bracket - FSA TH-7420ST, Cartridge Bearing
- Chain - KMC NS8
- Chainset - Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm (S), 175mm (M/L,XL)
- Cassette - Shimano MF-TZ500; 14-28 teeth; 7 speed
- Brake Lever - Shimano ST-EF500
- Brakes - Promax MTV-117A V Brake
- Grip - Merida EC
- Handlebar - Merida CC; steel; 620mm width; 30mm rise
- Stem - Merida TK; aluminium; 25.4mm diameter; adjustable - Stem length: 100mm (all sizes)
- Pedal - VP Components, VPE-891
- Saddle - Merida Cross Sport
- Seat Post - Merida TK; 27.2mm diameter; 13mm setback; 40mm seatpost suspension travel
- Wheel Size - 700c
- Rims - Merida CC; 17mm inner rim width; aluminium
- Front Hub - Joytech JY-751DSE; 100x9mm; 32 spokes
- Rear Hub - Joytech JY-752DSE; 135x9mm; 32 spokes
- Tyres - Merida K1171; 700x40C; wire bead
| Bike Type | Hybrid |
| Brake Type | V Type |
| Gender | Male
Female |
| Speed | 21 |
| Suspension | Front |
| Wheel Size | 700cc |
Condition & Setup:
Brand new and sealed in a box. This Bike will arrive to you 80% assembled.
Fitment of pedals, stem handlebars, front wheel & saddle is required, as well as a general check over and tighten of all fixings on pre-assembled parts (spoke tension, crank nuts, rear wheel nuts etc).
The brakes & gearing may need adjustment as part of the bicycles assembly and general servicing after initial use and throughout ownership. We strongly recommend professional assembly & servicing if you dont feel confident with bicycle mechanics.
