Trail-gator Tow Bar Trailer Red

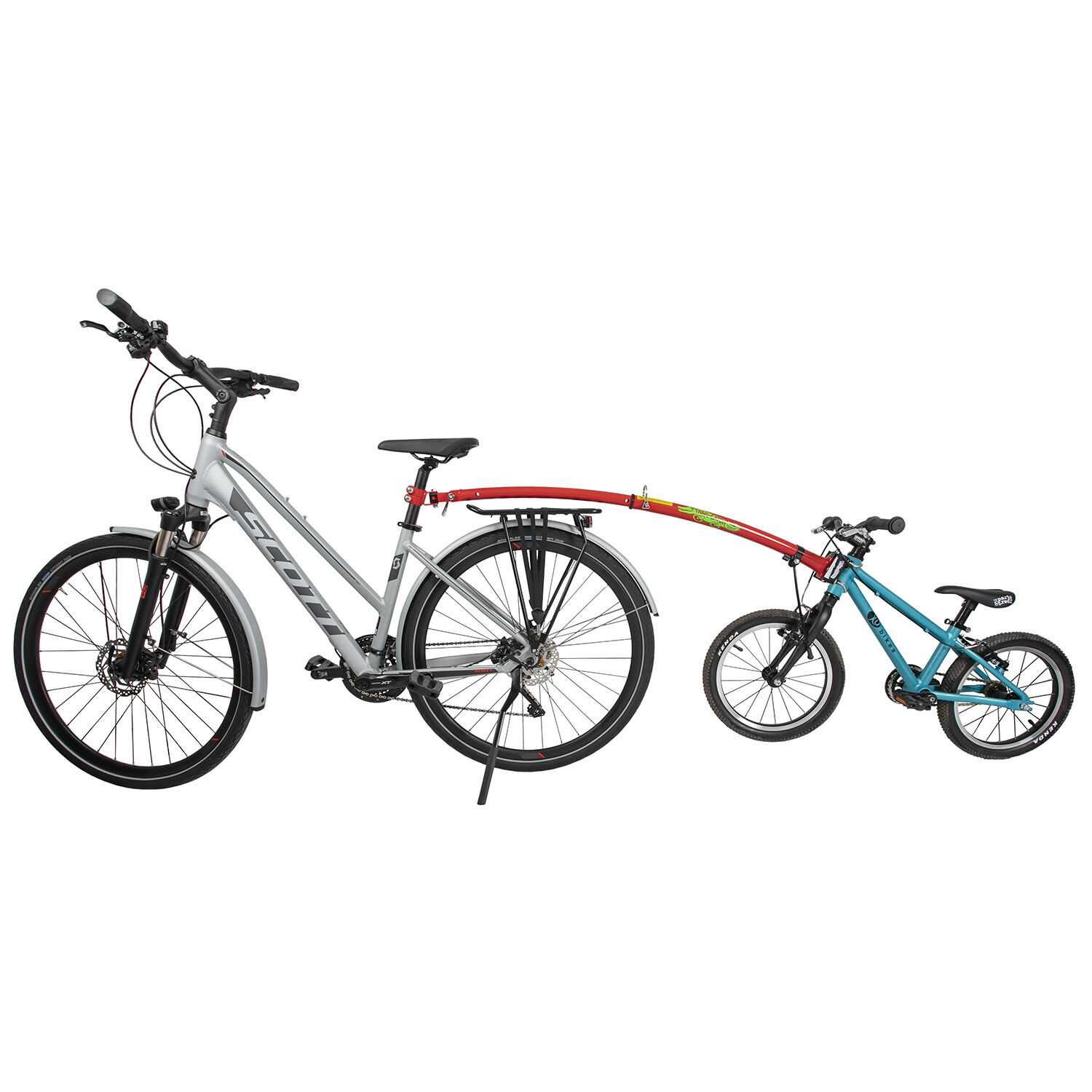

The Trail-Gator Bicycle Tow Bar converts an ordinary child's bike into a safe, towable trailer bike, whenever desired. To ride attached, simply unclip the tow bar from the stored position on the adult bike, extend it, and connect it to the receiver, which is mounted on the child's bike. When the child's bike is connected, the front wheel is lifted off the ground and a stabilizing bar prevents the handlebars from turning, leaving the adult in control of steering. Children can choose to coast or pedal while they are being towed, making the ride much easier for them.

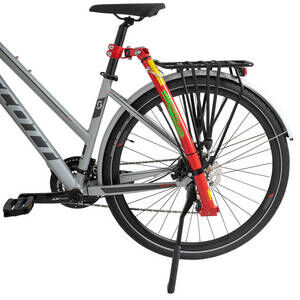

For independent riding, the Trail-Gator Bicycle Tow Bar telescopes together and folds down safely and compactly to the side of the adult bike and is securely held in place by a storage bracket. The tow bar stores discretely out of the way on the adult bike and is always there if needed. This option gives children a chance to ride on their own, and further their cycling skills.
- used as a learning aid or a tow bar
- tool-free children´s bike attachement or removal
- with quick release, fast to detach of seatpost
- suitable for 12" to 20” kids bikes (for use on kids bikes with cantilever brake art. 360904 is needed)
- max. load 32 kg (weight of the child)
- child can ride with an adult or be pulled
- handlebars can be affixed during use
- space saving storage and easy transport by retracting the tow bar
- colour: red
Trail-gator Tow Bar Trailer Red

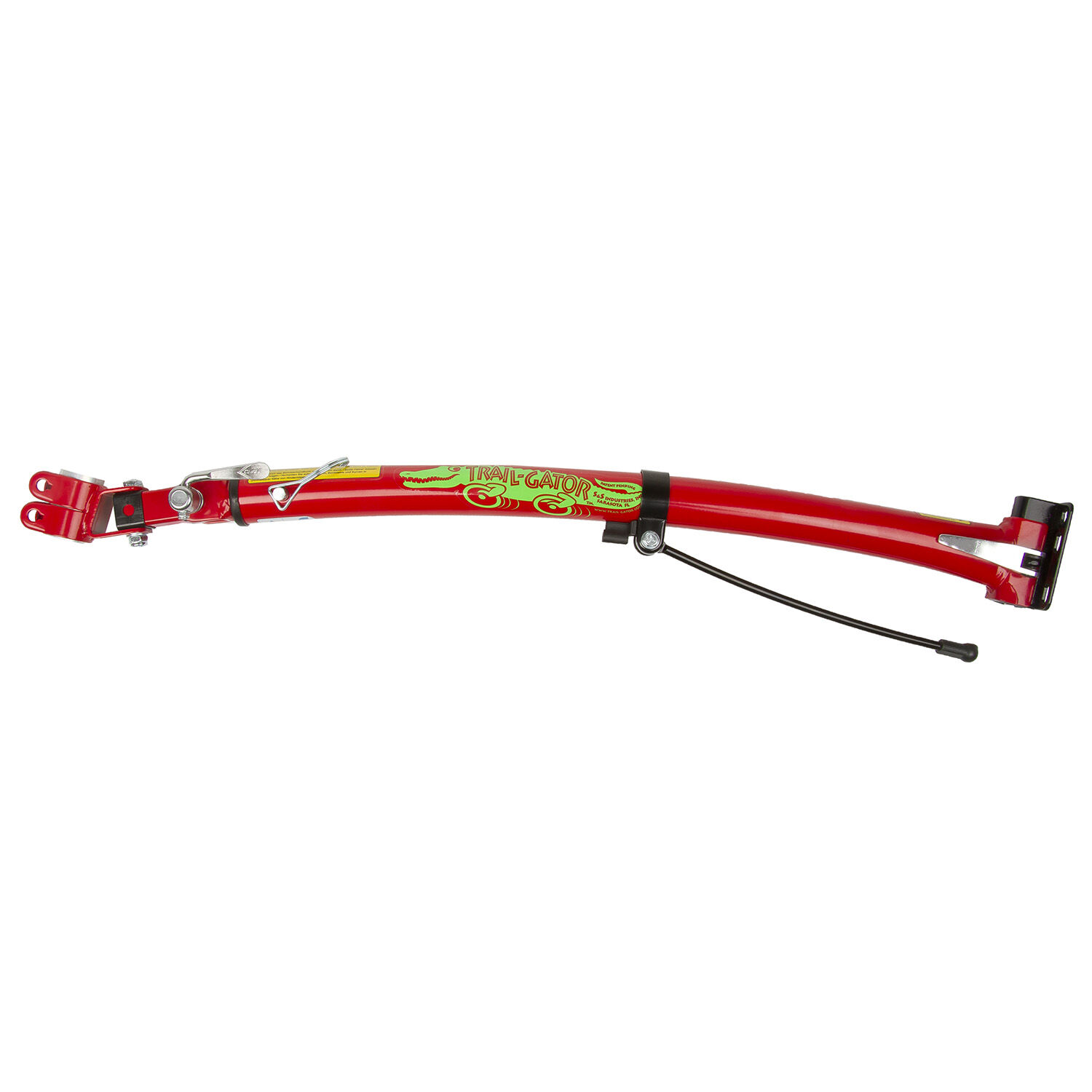

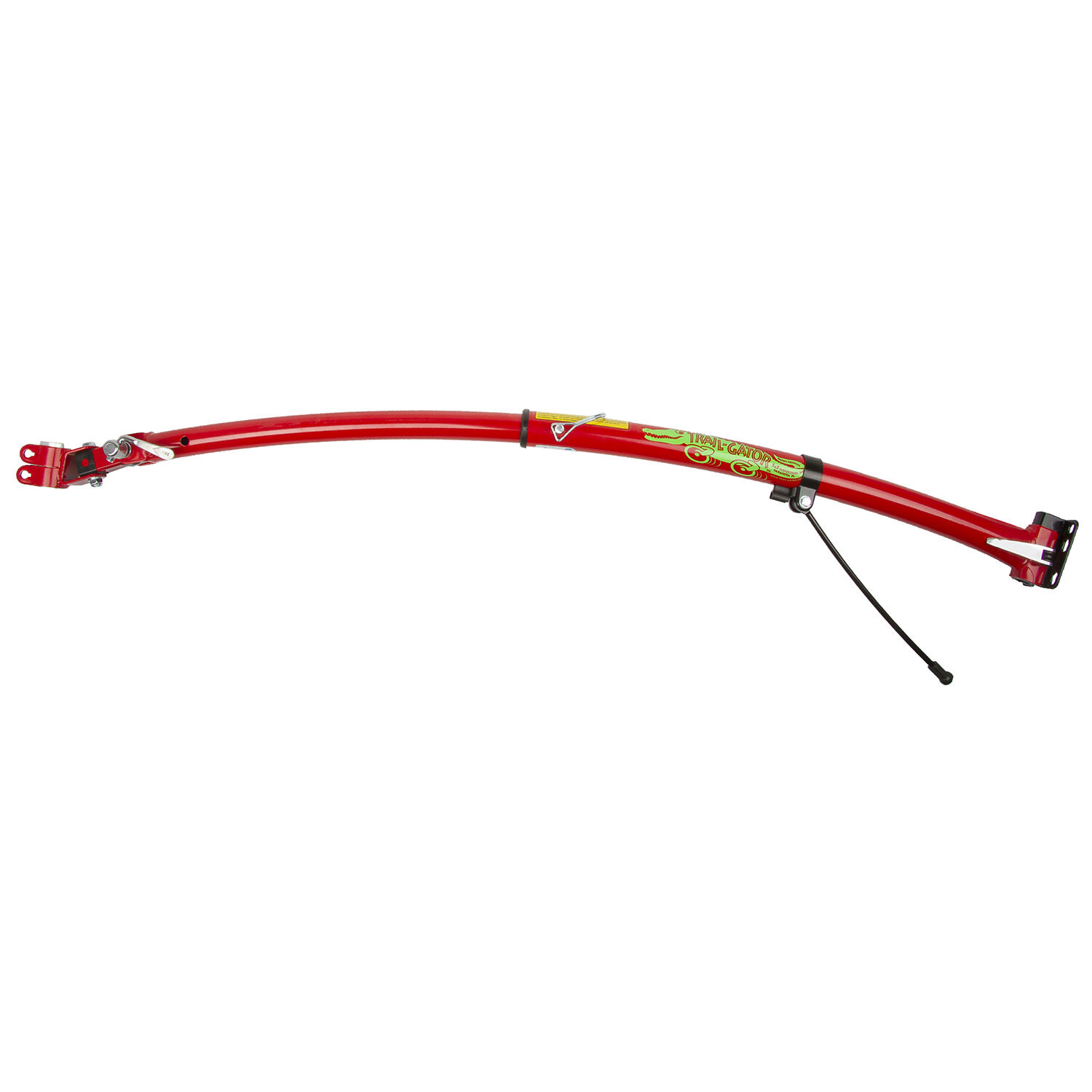

Attachment and detachment can be done at any time and only takes seconds. No tools are necessary and no parts need to be removed from either bike. The tow bar weights just 5 pounds and the high-strength steel construction make it virtually indestructible. The Trail-Gator Bicycle Tow Bar gives adults and children the option of riding together or separately for a fun, safe, and enjoyable bike ride. Whichever option you choose, the Trail-Gator makes it possible for you to enjoy the benefits of bicycling with your child.
Quick Release for easy removal of Tow Bar from the Adult Bike now included!
Ride attached or separately: almost every commercially available children´s bike can be attached to every commercially available adult´s bike!
- Fits 12" (30.5cm) - 20" (50.8cm) tire diameter size child bikes
- Adult bike minimum size tire diameter 25" (63.5cm)
- Tow bar receiver fits child bikes with head tubes up to 45mm (1.77") wide in diameter and expans for bolting distance of 105mm (4.1") for top and bottom U-bolt spacing.
- Fits adult bike seat post diameter 1" (25.4mm) - 1.25" (31.8mm)
- For use with children up to 70 pounds (32kg)
- Adult rider must weigh at least twice that of the child rider.
- Child bike must have rear free wheel capability. (Bike capable of coasting with out pedaling)
FAQs
CAN THE CHILD STEER THEIR BIKE WHEN ATTACHED?
Since the front wheel of the child bike is lifted off the ground and the handlebars of the child bike are secured by the handlebar stabilizer rod, the adult bike controls all steering.
HOW DOES TOWING AFFECT THE BALLANCE AND OVER ALL RIDE OF THE ADULT BIKE?
Anyone who can balance when riding alone should not have problems balancing with the tow bar attached. It is recommended that you first attach the tow bar and ride without towing a child to become familiar with balancing, turning, stopping, starting, and the over all feel of riding with the tow bar. Though towing may feel slightly different at first, most riders adapt quickly and easily.
WOULD THE TRAIL-GATOR BE SUITABLE TO USE IN ROUGH TERRAIN SITUATIONS?
The Trail-Gator was designed and tested for the purposes of on-road use. Rough terrain may present riding situations for which the Trail-Gator was not designed or tested.
IS THE CHILD USING THE REAR WHEEL BRAKE A PROBLEM?
We suggest that you work with your child on when and when not to use the brakes and practice in a vacant area before you go out on a ride. With good instruction this will not be a problem.
CAN THE TRAIL-GATOR BE USED WITH AN ADULT BIKE THAT HAS A CHILD CARRIER OR LUGGAGE RACK SECURED TO IT?
In order for the Trail-Gator to operate, the tow bar must have the freedom to move up and down slightly and side to side when towing. Consequently, it will work with some luggage racks, but will not work with a child carrier.
WILL THE TOW BAR STORE ON AN ADULT BIKE WITH REAR DISC BRAKES?
The tow bar should work with rear disc brakes as long as there is room to place the tow bar storage bracket on the rear wheel axle. The tow bar can be folded to either side of the bike for storage.
CAN THE TRAIL-GATOR BE USED ON A CHILD BIKE LARGER THAN 20" OR WITH PERSONS WEIGHING MORE THAN 70 POUNDS?
The Trail-Gator is designed to work with 12"-20" bikes with riders weighing 70 pounds or less. Due to the receiver angle on the tow bar, bike frames larger than 20” will not be able to be set up to the proper wheel height clearance. Child riders more than 70 pounds also make it more difficult to tow.
CAN THE TRAIL-GATOR BE USED WITH ADULT BIKES WITH WHEEL DIAMETERS SMALLER THAN 25"?
The Trial-Gator is designed for use with 25” diameter and larger wheel adult bikes to ensure that the proper wheel lift is achieved on the child bike when installing and towing. Smaller adult frames could cause the child bike to ride lower to the ground without the proper front wheel clearance.
HOW FAR IS THE FRONT WHEEL OF THE CHILD BIKE LIFTED OFF OF THEN GROUND?
The Trail-Gator is provided with an adjustable receiver, which mounts to the front of the child's bike, that allows you to lift the child's front wheel a recommended 3"-5" off the ground. This keeps the child at a safe and comfortable angle while riding.
WHAT KEEPS THE CHILD'S BIKE IN AN UP RIGHT POSITION, WHEN ATTACHED?
The tow bar has a vertical and a horizontal pivot located at the adult bike seat post area, which allow for side to side and up and down movement only, and keeps the child bike in an up right position when being towed. The tow bar attachment to the child bike receiver is a rigid mount therefore restricting movement at that end.
CAN THE TRAIL-GATOR BE USED ON 3 WHEEL BIKES OR TRI-CYCLES?
No, the Trail-Gator only have up and down and side to side move, which requires the trailed bike to lean with the adult bike when towed.
CAN THE TRIAL-GATOR BE USED ON ADULT FRONT AND REAR SUSPENSION TYPE BIKES?
Yes, the Trail-Gator can be used on most types of suspension bikes. We suggest that the rear end be adjusted as to limit the up and down movement.
